Magnum Harvesters

Magnum : The Force in Turf
All Magnum Harvesters offer you the innovation, flexibility, options and performance you need to please more customers, operate more efficiently and generate more revenue.
The Magnum line was designed and built with features and benefits discovered 'from the ground up' in over thirty years of harvesting turf. It is a continual process to find new, improved and more profitable ways to help you harvest turf with Magnum Harvesters.
 Magnum Harvesters are built tough for the harsh and unforgiving Australian conditions.
Magnum Harvester
The Magnum 42BR Big Roll Harvester was introduced into the US turf industry more than 15 years ago. It has earned a reputation for dependability and performance in a variety of conditions and harvesting a variety of turf grasses.
The patented net application reinforces young and tender turf ensuring that you maximise the full benefits of big rolls. By harvesting less mature grasses, you get quicker regrowth on your paddocks. The netting also allows you to harvest slightly thinner rolls with less soil if need be.
The two stage conveyor system gives new found control over rolling tension and ultimately, the tightness of the roll. You are able to pull the turf into tighter rolls and stop and start a roll without any gaps.
Using this Magnum system enables you to keep the roll off the ground, thus reducing damage and manual labour.
Features
- Flexibility in Cutter Head Size
( 2 x Split Heads or 1 x Solid Head )
- Available in Overall Cutting Width of 42" or 48"
- Dual Tandem Hydraulic Pump
- Side Coulters can be Fitted (optional)
- Anti Vibration Heads (optional)
- Electronic Depth Control
- Variable Speed Conveyors
- One Touch Hydraulic Operation
- Manual Chop Off & Centre Tube Installation
Current Magnum BR Harvester Owners
- Jimboomba Turf, Queensland
- Tarcoola Turf, New South Wales
- Millers Turf, New South Wales
- Bormann Turf, South Australia
- Strathayr, Victoria
- HG Turf, Victoria
Magnum Harvester
The Magnum 42CP (Complete) is famous for it's versatility. This Magnum Harvester is like having 3 harvesters rolled into one;
Small Rolls, Slabs & Big Rolls all to perfection.
In about 15 minutes you can convert the Magnum 42CP machine from slabs or small rolls, to being able to cut big rolls.
This high performance harvester simultaneously cuts two slabs or small rolls at a time and places the turf at working height to the stackers who then place the turf onto the accompanying pallet, saving back breaking labour and any OH&S issues.
A canopy protects the harvesting crew from the sun.
Features
- Available in Overall Cutting Width of 42" or 48"
- Dual Tandem Hydraulic Pump
- Automatic Chop Off Blades
- Electronic Depth Control
- Easy Changeover - Slabs, Small Rolls & Big Rolls
Current Magnum CP Harvester Owners
- Tinamba Turf, Queensland
- Orara Turf, New South Wales
- Anco Turf, Victoria
Magnum Harvester
The Magnum 420SR is a semi automatic big roll harvester. Incorporating all of the features of the Magnum 42BR, the 420SR has loads of additional features that help reduce downtime, maximise labour and increase productivity.
It has a large removable tube rack which is easy to reload. A tube injector makes for quick and east tube addition and with the net injector you can introduce net to the big roll at the start or the end of a roll.
A self starting conveyor eliminates hand wrapping turf around the tube.
Features
- Available in Overall Cutting Width of 42" or 48"
- Dual Tandem Hydraulic Pump
- Variable Pressure Controls
- Automatic Chop Off Blade
- Anti Vibration Heads
- Electronic Depth Control
- Automatic Centre Tube Injection
- Automatic Netting Injection
- Side Coulters can be Fitted (optional)
- Fitted with Tipper Trailer
Current Magnum SR Harvester Owners
- Lowlands Turf, New South Wales
- Evergreen Turf, Victoria

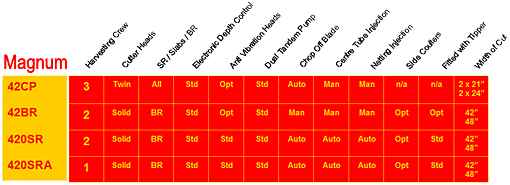

Magnum Harvesters at a Glance
|
For further details on any of the Magnum Harvesters, or if you would like to recieve a DVD, outlining the full Magnum range, please contact Bill Wilson on 0266 538470 or alternatively email us at magnum@oraraturf.com.au
|
 |
|
